GATE AE 2016 Question Paper

Question 1 (1 mark, MCQ)

General Aptitude - Numerical Ability

The chairman requested the aggrieved shareholders to _________________ him.

1. bare with
2. bore with
3. bear with
4. bare

Official answer: C

Question 2 (1 mark, MCQ)

General Aptitude - Numerical Ability

Identify the correct spelling out of the given options:

1. Managable
2. Manageable
3. Mangaeble
4. Managible

Official answer: B

Question 3 (1 mark, MCQ)

General Aptitude - Numerical Ability

Pick the odd one out in the following: 13, 23, 33, 43, 53

1. 23
2. 33
3. 43
4. 53

Official answer: B

Question 4 (1 mark, MCQ)

General Aptitude - Analytical & Spatial Reasoning

R2D2 is a robot. R2D2 can repair aeroplanes. No other robot can repair aeroplanes. Which of the following can be logically inferred from the above statements?

1. R2D2 is a robot which can only repair aeroplanes.
2. R2D2 is the only robot which can repair aeroplanes.
3. R2D2 is a robot which can repair only aeroplanes.
4. Only R2D2 is a robot.

Official answer: B

Question 5 (1 mark, MCQ)

General Aptitude - Numerical Ability

If $|9y - 6| = 3$, then $y^2 - 4y/3$ is _______.

1. 0
2. +1/3
3. -1/3
4. undefined

Official answer: C

Question 6 (2 marks, NAT)

General Aptitude - Analytical & Spatial Reasoning

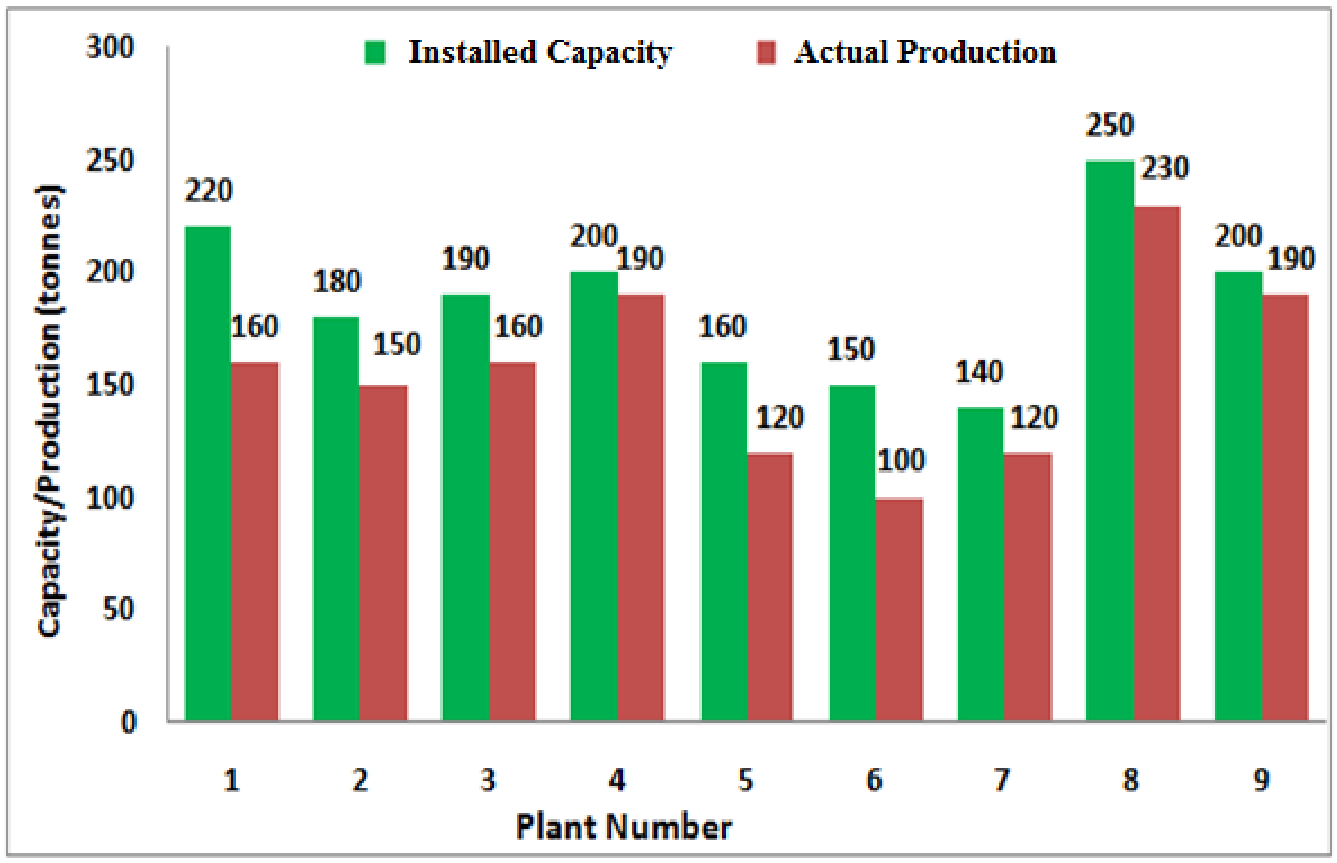

The following graph represents the installed capacity for cement production (in tonnes) and the actual production (in tonnes) of nine cement plants of a cement company. Capacity utilization of a plant is defined as ratio of actual production of cement to installed capacity. A plant with installed capacity of at least 200 tonnes is called a large plant and a plant with lesser capacity is called a small plant. The difference between total production of large plants and small plants, in tonnes is ____.

Official answer: 120

Question 7 (2 marks, MCQ)

General Aptitude - Analytical & Spatial Reasoning

A poll of students appearing for masters in engineering indicated that 60 % of the students believed that mechanical engineering is a profession unsuitable for women. A research study on women with masters or higher degrees in mechanical engineering found that 99 % of such women were successful in their professions. Which of the following can be logically inferred from the above paragraph?

1. Many students have misconceptions regarding various engineering disciplines.
2. Men with advanced degrees in mechanical engineering believe women are well suited to be mechanical engineers.
3. Mechanical engineering is a profession well suited for women with masters or higher degrees in mechanical engineering.
4. The number of women pursuing higher degrees in mechanical engineering is small.

Official answer: C

Question 8 (2 marks, MCQ)

General Aptitude - Verbal Ability

Sourya committee had proposed the establishment of Sourya Institutes of Technology (SITs) in line with Indian Institutes of Technology (IITs) to cater to the technological and industrial needs of a developing country. Which of the following can be logically inferred from the above sentence? Based on the proposal, (i) In the initial years, SIT students will get degrees from IIT. (ii) SITs will have a distinct national objective. (iii) SIT like institutions can only be established in consultation with IIT. (iv) SITs will serve technological needs of a developing country.

1. (iii) and (iv) only.
2. (i) and (iv) only.
3. (ii) and (iv) only.
4. (ii) and (iii) only.

Official answer: C

Question 9 (2 marks, MCQ)

General Aptitude - Numerical Ability

Shaquille O' Neal is a 60% career free throw shooter, meaning that he successfully makes 60 free throws out of 100 attempts on average. What is the probability that he will successfully make exactly 6 free throws in 10 attempts?

1. 0.2508
2. 0.2816
3. 0.2934
4. 0.6000

Official answer: A

Question 10 (2 marks, NAT)

General Aptitude - Numerical Ability

The numeral in the units position of $211^{870} + 146^{127} \times 3^{424}$ is _____.

Official answer: 7

Question 11 (1 mark, MCQ)

Aerodynamics - Airfoils & Wings

With increase in airfoil thickness, the critical Mach number for an airfoil is likely to

1. decrease.
2. increase.
3. remain unchanged.
4. be undefined.

Official answer: A

Question 12 (1 mark, NAT)

Aerodynamics - Potential Flow

Due to a body in potential flow, the velocity at a point A in the flow field is 20 m/s while the free stream velocity is only 10 m/s. The value of coefficient of pressure ($C_p$) at the point A is _________.

Official answer: -3

Question 13 (1 mark, MCQ)

Aerodynamics - Airfoils & Wings

Which of the following airfoil will have location of the maximum camber at half chord length from the leading edge?

1. NACA 5212
2. NACA 1225
3. NACA 2215
4. NACA 2512

Official answer: D

Question 14 (1 mark, MCQ)

Aerodynamics - Viscous Flows & Boundary Layers

For a laminar incompressible flow past a flat plate at zero angle of attack, the variation of skin friction drag coefficient ($C_f$) with Reynolds number based on the chord length ($Re_c$) can be expressed as

1. $C_f \propto \sqrt{Re_c}$
2. $C_f \propto Re_c$
3. $C_f \propto \dfrac{1}{\sqrt{Re_c}}$
4. $C_f \propto \dfrac{1}{Re_c}$

Official answer: C

Question 15 (1 mark, MCQ)

Aerodynamics - Compressible Flows

Which of the following statement is NOT TRUE across an oblique shock wave?

1. Static temperature increases, total temperature remains constant.
2. Static pressure increases, static temperature increases.
3. Static temperature increases, total pressure decreases.
4. Static pressure increases, total temperature decreases.

Official answer: D

Question 16 (1 mark, MCQ)

Aerodynamics - Compressible Flows

For a completely subsonic isentropic flow through a convergent nozzle, which of the following statement is TRUE?

1. Pressure at the nozzle exit > back pressure.
2. Pressure at the nozzle exit < back pressure.
3. Pressure at the nozzle exit = back pressure.
4. Pressure at the nozzle exit = total pressure.

Official answer: C

Question 17 (1 mark, MCQ)

Propulsion - Engine Performance

Which of the following aircraft engines has the highest propulsive efficiency at a cruising Mach number of less than 0.5?

1. Turbofan engine
2. Turbojet engine
3. Turboprop engine
4. Ramjet engine

Official answer: C

Question 18 (1 mark, MCQ)

Aerodynamics - Viscous Flows & Boundary Layers

Air, with a Prandtl number of 0.7, flows over a flat plate at a high Reynolds number. Which of the following statement is TRUE?

1. Thermal boundary layer is thicker than the velocity boundary layer.
2. Thermal boundary layer is thinner than the velocity boundary layer.
3. Thermal boundary layer is as thick as the velocity boundary layer.
4. There is no relationship between the thicknesses of thermal and velocity boundary layers.

Official answer: A

Question 19 (1 mark, MCQ)

Engineering Mathematics - Linear Algebra

Consider an eigenvalue problem given by $\mathbf{A}x = \lambda_i x$. If $\lambda_i$ represent the eigenvalues of the non-singular square matrix $\mathbf{A}$, then what will be the eigenvalues of matrix $\mathbf{A}^2$?

1. $\lambda_i^4$
2. $\lambda_i^2$
3. $\lambda_i^{1/2}$
4. $\lambda_i^{1/4}$

Official answer: B

Question 20 (1 mark, MCQ)

Engineering Mathematics - Linear Algebra

If $\mathbf{A}$ and $\mathbf{B}$ are both non-singular $n \times n$ matrices, then which of the following statement is NOT TRUE. Note: det represents the determinant of a matrix.

1. $\det(\mathbf{AB}) = \det(\mathbf{A})\det(\mathbf{B})$
2. $\det(\mathbf{A}+\mathbf{B}) = \det(\mathbf{A}) + \det(\mathbf{B})$
3. $\det(\mathbf{A}\mathbf{A}^{-1}) = 1$
4. $\det(\mathbf{A}^T) = \det(\mathbf{A})$

Official answer: B

Question 21 (1 mark, NAT)

Structures - Strength of Materials

The total number of material constants that are necessary and sufficient to describe the three dimensional Hooke's law for an isotropic material is ____.

Official answer: 2

Question 22 (1 mark, MCQ)

Structures - Strength of Materials

Determine the correctness or otherwise of the following statements, [a] and [r]: [a]: In a plane stress problem, the shear strains along the thickness direction of a body are zero but the normal strain along the thickness is not zero. [r]: In a plane stress problem, Poisson effect induces the normal strain along the thickness direction of the body.

1. Both [a] and [r] are true and [r] is the correct reason for [a].
2. Both [a] and [r] are true but [r] is not the correct reason for [a].
3. Both [a] and [r] are false.
4. [a] is true but [r] is false.

Official answer: A

Question 23 (1 mark, MCQ)

Structures - Flight Vehicle Structures

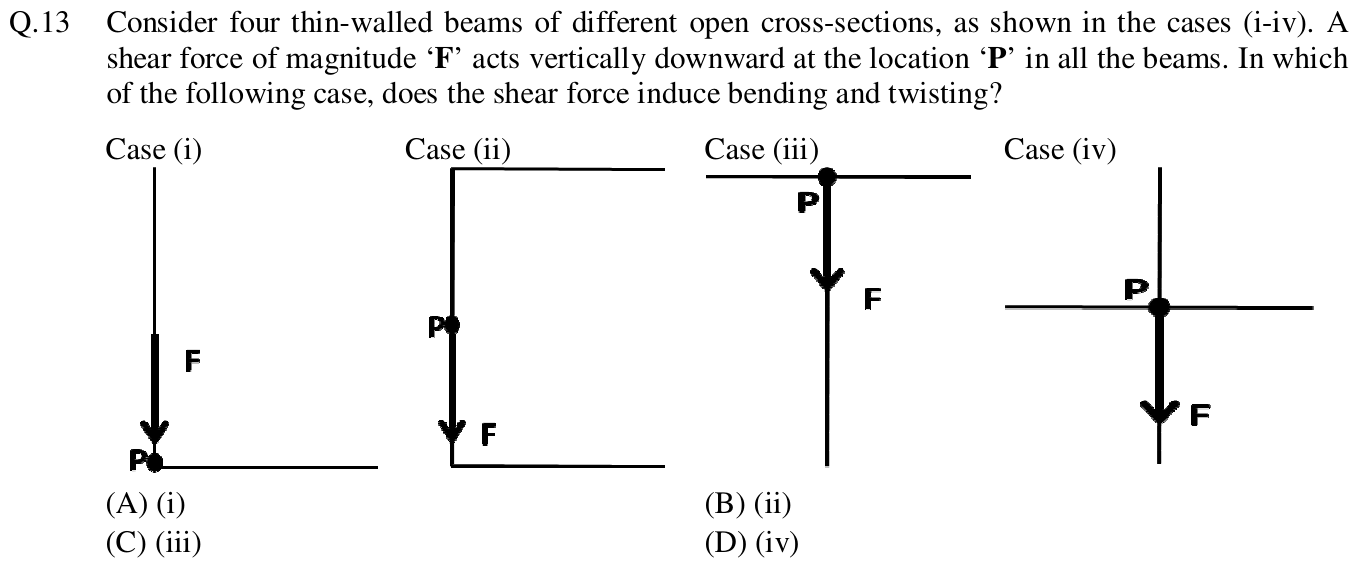

Consider four thin-walled beams of different open cross-sections, as shown in the cases (i-iv). A shear force of magnitude 'F' acts vertically downward at the location 'P' in all the beams. In which of the following case, does the shear force induce bending and twisting?

1. (i)
2. (ii)
3. (iii)
4. (iv)

Official answer: B

Question 24 (1 mark, NAT)

Structures - Structural Dynamics

The effective stiffness of the spring-mass system as shown in the figure below is ____ N/mm.

Official answer: 5

Question 25 (1 mark, MCQ)

Structures - Strength of Materials

A structural member supports loads, which produce at a particular point, a state of pure shear stress of 50 N/mm$^2$. At what angles are the principal planes oriented with respect to the plane of pure shear?

1. $\pi/6$ and $2\pi/3$
2. $\pi/4$ and $3\pi/4$
3. $\pi/4$ and $\pi/2$
4. $\pi/2$ and $\pi$

Official answer: B

Question 26 (1 mark, NAT)

Engineering Mathematics - Calculus

Let $x$ be a positive real number. The function $f(x) = x^2 + \dfrac{1}{x^2}$ has its minima at $x =$ ______.

Official answer: 1

Question 27 (1 mark, NAT)

Engineering Mathematics - Calculus

The vector $\vec{u}$ is defined as $\vec{u} = y\hat{e}_x - x\hat{e}_y$, where $\hat{e}_x$ and $\hat{e}_y$ are the unit vectors along x and y directions, respectively. If the vector $\vec{\omega}$ is defined as $\vec{\omega} = \vec{\nabla} \times \vec{u}$, then $\left|(\vec{\omega}\cdot\vec{\nabla})\vec{u}\right| =$ ______.

Official answer: 0

Question 28 (1 mark, MCQ)

Engineering Mathematics - Differential Equations

The partial differential equation $\dfrac{\partial u}{\partial t} = \alpha\dfrac{\partial^2 u}{\partial x^2}$, where $\alpha$ is a positive constant, is

1. circular.
2. elliptic.
3. hyperbolic.
4. parabolic.

Official answer: D

Question 29 (1 mark, MCQ)

Propulsion - Combustors

Combustion in gas turbine engines is ideally represented as the following process:

1. Adiabatic
2. Isentropic
3. Isobaric
4. Isochoric

Official answer: C

Question 30 (1 mark, MCQ)

Propulsion - Rockets

For a given chamber pressure, the thrust of a rocket engine is highest when

1. the rocket is operating at its design altitude.
2. the rocket is operating in vacuum.
3. the rocket is operating at sea-level.
4. there is a normal shock in the rocket nozzle.

Official answer: B

Question 31 (1 mark, MCQ)

Flight Mechanics & Space Dynamics - Flight Dynamics

The damping ratio in phugoid motion for gliders is usually less compared to powered aircraft because

1. gliders are unpowered.
2. gliders are light.
3. lift to drag ratio is higher for gliders.
4. gliders fly at low speed.

Official answer: C

Question 32 (1 mark, MCQ)

Flight Mechanics & Space Dynamics - Atmosphere & Flight Instruments

During an aircraft cruising flight, the altitude above the ground is usually measured using

1. dynamic pressure.
2. static pressure.
3. radar.
4. laser range finder.

Official answer: B

Question 33 (1 mark, MCQ)

Flight Mechanics & Space Dynamics - Atmosphere & Flight Instruments

Indicated airspeed is used by a pilot during

1. take-off.
2. navigation.
3. setting the engine RPM.
4. setting the elevator angle.

Official answer: A

Question 34 (1 mark, MCQ)

Flight Mechanics & Space Dynamics - Airplane Performance

The pitch angle and the angle of attack for a fixed wing aircraft are equal during

1. wings level constant altitude flight.
2. unaccelerated climb.
3. unaccelerated descent.
4. landing.

Official answer: A

Question 35 (1 mark, MCQ)

Flight Mechanics & Space Dynamics - Airplane Performance

The load factor of an aircraft turning at a constant altitude is 2. The coefficient of lift required for turning flight as compared to level flight at the same speed will be

1. same
2. half
3. double
4. four times

Official answer: C

Question 36 (2 marks, NAT)

Propulsion - Engine Performance

An un-mixed turbofan engine with a bypass ratio of 6.0, flies with a velocity of 200 m/s. The core and the bypass nozzles of the engine, that are both convergent nozzles, operate under choked condition and have exhaust static temperatures of 580 K and 295 K, respectively. The specific gas constant and the ratio of specific heats for both the streams are 287 J/kgK and 1.4, respectively. If the fuel-air ratio is negligible, the thrust per unit mass flow rate generated by the engine is _______ Ns/kg.

Question 37 (2 marks, MCQ)

Propulsion - Turbomachinery

A single-stage gas turbine operates with an axial absolute flow at the entry and exit from the stage. The absolute flow angle at the nozzle exit is $70^\circ$. The turbine stage generates a specific work of 228 kJ/kg when operating with a mean blade speed of 440 m/s. The absolute velocity at the rotor entry is

1. 275.7 m/s
2. 551.5 m/s
3. 1103.0 m/s
4. 1654.5 m/s

Official answer: B

Question 38 (2 marks, NAT)

Propulsion - Turbomachinery

An axial compressor operates such that it has an inlet and an exit total temperature of 300 K and 430 K, respectively. The isentropic efficiency of the compressor is 85 %. If the ratio of specific heats is 1.4, then the total pressure ratio across the compressor is ____________.

Official answer: 2.9 to 3.1

Question 39 (2 marks, MCQ)

Aerodynamics - Potential Flow

The maximum value of coefficient of lift ($C_l$) for a 2D circular cylinder, provided at least one stagnation point lies on the cylinder surface, is predicted by the potential flow theory to be

1. $\pi/2$
2. $\pi$
3. $2\pi$
4. $4\pi$

Official answer: D

Question 40 (2 marks, NAT)

Aerodynamics - Basic Fluid Mechanics

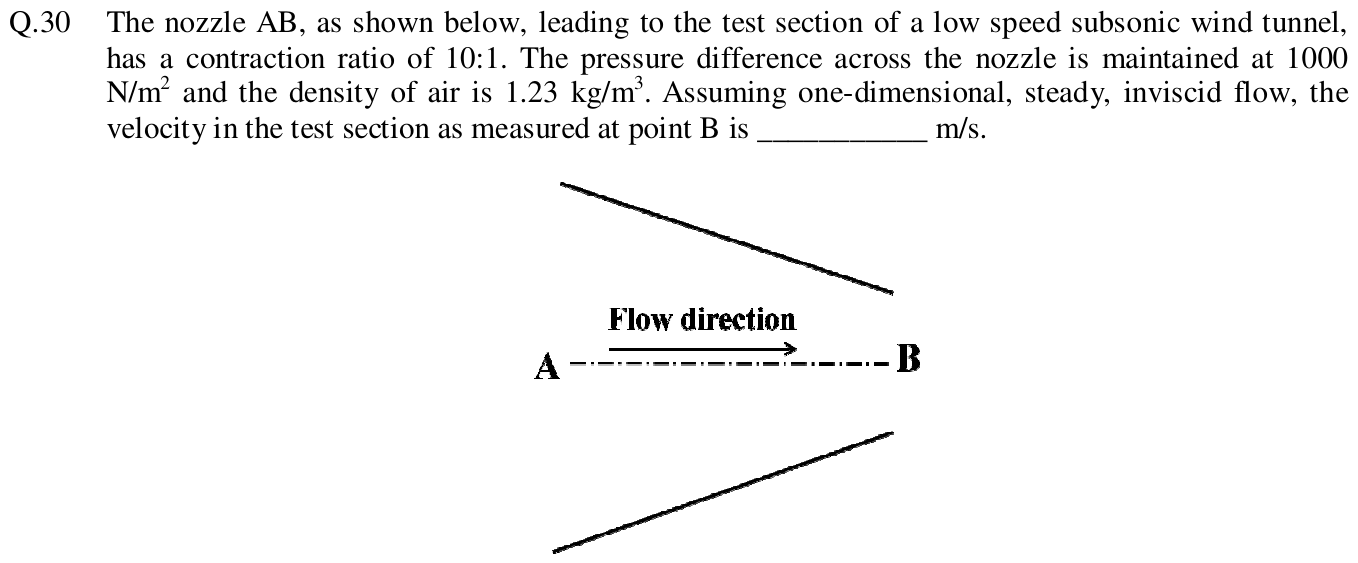

The nozzle AB, as shown below, leading to the test section of a low speed subsonic wind tunnel, has a contraction ratio of 10:1. The pressure difference across the nozzle is maintained at 1000 N/m$^2$ and the density of air is 1.23 kg/m$^3$. Assuming one-dimensional, steady, inviscid flow, the velocity in the test section as measured at point B is ___________ m/s.

Official answer: 40.0 to 41.0

Question 41 (2 marks, MCQ)

Aerodynamics - Airfoils & Wings

The rate of change of moment coefficient with respect to the angle of attack, $\dfrac{dC_m}{d\alpha}$, at half chord point of a thin airfoil, as per approximations from the thin airfoil theory is

1. $\pi/4\ \text{radian}^{-1}$
2. $\pi/2\ \text{radian}^{-1}$
3. $\pi\ \text{radian}^{-1}$
4. $2\pi\ \text{radian}^{-1}$

Official answer: B

Question 42 (2 marks, MCQ)

Aerodynamics - Airfoils & Wings

An untwisted wing of elliptic planform and aspect ratio 6 consists of thin symmetric airfoil sections. The coefficient of lift ($C_L$) at $10^\circ$ angle of attack assuming inviscid incompressible flow is

1. $\pi^2/16$
2. $\pi^2/12$
3. $\pi^2/8$
4. $\pi/2$

Official answer: B

Question 43 (2 marks, NAT)

Propulsion - Combustors

A gaseous mixture of air and fuel enters a constant area combustion chamber at a velocity of 100 m/s and at a static temperature of 300 K. The heat release due to combustion is 1000 kJ/kg. The specific heat at constant pressure of the calorically perfect gas is 1000 J/kgK. The total temperature of air-fuel mixture after combustion is ______ K.

Official answer: 1305

Question 44 (2 marks, MCQ)

Aerodynamics - Compressible Flows

Consider 1-D, steady, inviscid, compressible flow through a convergent nozzle. The total temperature and total pressure are $T_o$, $P_o$ respectively. The flow through the nozzle is choked with a mass flow rate of $\dot{m}_o$. If the total temperature is increased to $4T_o$, with total pressure remaining unchanged, then the mass flow rate through the nozzle

1. remains unchanged.
2. becomes half of $\dot{m}_o$.
3. becomes twice of $\dot{m}_o$.
4. becomes four times of $\dot{m}_o$.

Official answer: B

Question 45 (2 marks, MCQ)

Engineering Mathematics - Differential Equations

Consider a second order linear ordinary differential equation $\dfrac{d^2y}{dx^2} - 4\dfrac{dy}{dx} + 4y = 0$, with the boundary conditions $y(0) = 1$; $\dfrac{dy}{dx}\Big|_{x=0} = 1$. The value of $y$ at $x = 1$ is

1. 0
2. 1
3. $e$
4. $e^2$

Official answer: A

Question 46 (2 marks, MCQ)

Engineering Mathematics - Linear Algebra

Consider the following system of linear equations: $$\begin{aligned} 2x - y + z &= 1 \\ 3x - 3y + 4z &= 6 \\ x - 2y + 3z &= 4 \end{aligned}$$ This system of linear equations has

1. no solution.
2. one solution.
3. two solutions.
4. three solutions.

Official answer: A

Question 47 (2 marks, NAT)

Structures - Strength of Materials

A bar made of linear elastic isotropic material is fixed at one end and subjected to an axial force of 1 kN at the other end. The cross-sectional area of the bar is 100 mm$^2$, length is 100 mm and the Young's Modulus is $1 \times 10^5$ N/mm$^2$. The strain energy stored in the bar is ____ Nmm.

Official answer: 5

Question 48 (2 marks, NAT)

Structures - Strength of Materials

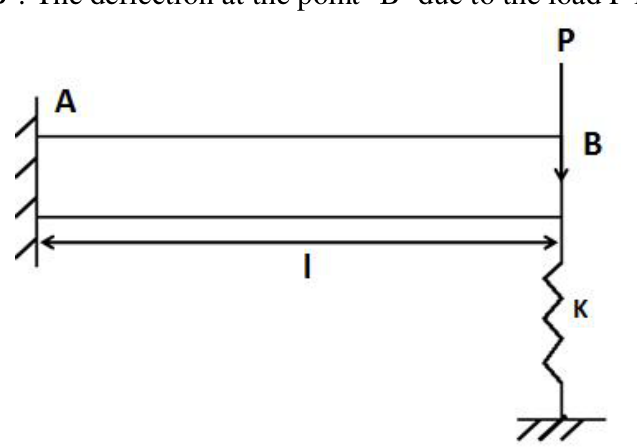

A cantilever beam-spring system is shown in the figure. The beam is made with a material of Young's modulus $1 \times 10^5$ N/mm$^2$ and geometry such that its moment of inertia is 100 mm$^4$ and length $l = 100$ mm. It is supported by a spring of stiffness $K = 30$ N/mm and subjected to a load of $P = 100$ N at the point 'B'. The deflection at the point 'B' due to the load P is ____ mm.

Official answer: 1.5 to 1.7

Question 49 (2 marks, MCQ)

Structures - Flight Vehicle Structures

Determine the correctness or otherwise of the following statements, [a] and [r]: [a]: Ribs, used in airplane wings, increase the column buckling strength of the longitudinal stiffeners. [r]: Ribs distribute concentrated loads into the structure and redistribute stresses around discontinuities.

1. Both [a] and [r] are true and [r] is the correct reason for [a]
2. Both [a] and [r] are true but [r] is not the correct reason for [a]
3. Both [a] and [r] are false
4. [a] is true but [r] is false

Official answer: B

Question 50 (2 marks, NAT)

Structures - Flight Vehicle Structures

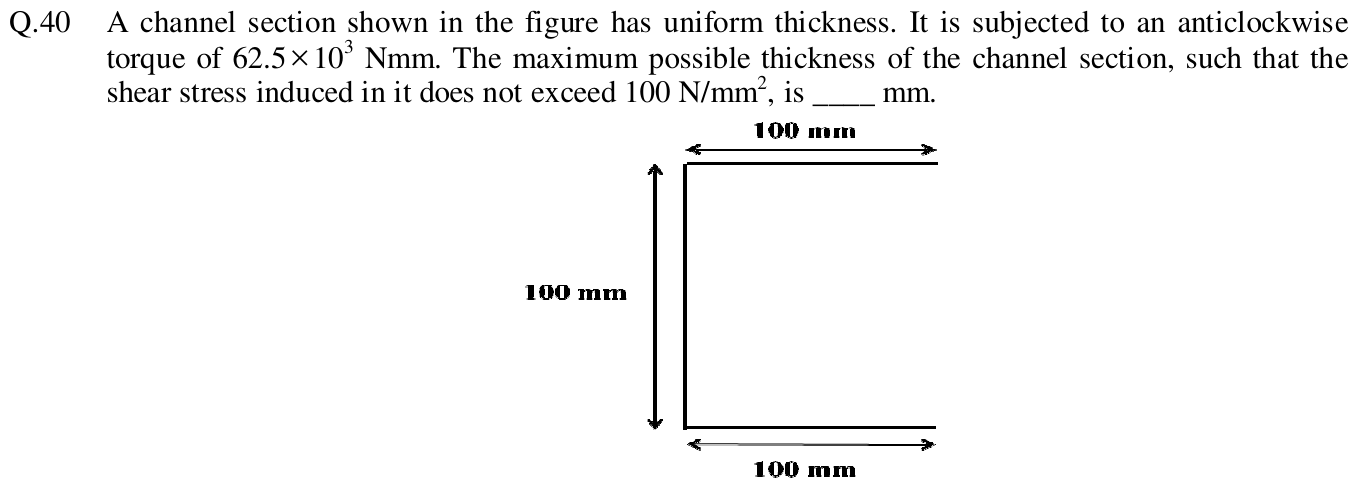

A channel section shown in the figure has uniform thickness. It is subjected to an anticlockwise torque of $62.5 \times 10^3$ Nmm. The maximum possible thickness of the channel section, such that the shear stress induced in it does not exceed 100 N/mm$^2$, is ____ mm.

Official answer: 2.4 to 2.6

Question 51 (2 marks, NAT)

Structures - Structural Dynamics

The governing differential equation of motion of a damped system is given by $m\dfrac{d^2x}{dt^2} + c\dfrac{dx}{dt} + kx = 0$. If $m = 1$ kg, $c = 2$ Ns/m and $k = 2$ N/m then the frequency of the damped oscillation of this system is ____ rad/s.

Official answer: 0.99 to 1.01

Question 52 (2 marks, NAT)

Structures - Strength of Materials

The two dimensional state of stress in a body is described by the Airy's stress function: $\phi = 5\dfrac{x^4}{12} + \dfrac{x^3y}{6} + 3\dfrac{x^2y^2}{2} + 7\dfrac{xy^3}{6} + E\dfrac{y^4}{12}$. The Airy's stress function will satisfy the equilibrium and the compatibility requirements if and only if the value of the coefficient E is ____.

Official answer: -11

Question 53 (2 marks, NAT)

Engineering Mathematics - Calculus

The value of definite integral $\int_0^{\pi} (x\sin x)\,dx$ is _______.

Official answer: 3.13 to 3.15

Question 54 (2 marks, NAT)

Engineering Mathematics - Numerical Methods

Use Newton-Raphson method to solve the equation: $xe^x = 1$. Begin with the initial guess $x_0 = 0.5$. The solution after one step is $x =$ _________.

Official answer: 0.56 to 0.58

Question 55 (2 marks, NAT)

Propulsion - Aerothermodynamics & Cycles

A wall of thickness 5 mm is heated by a hot gas flowing along the wall. The gas is at a temperature of 3000 K, and the convective heat transfer coefficient is 160 W/m$^2$K. The wall thermal conductivity is 40 W/mK. If the colder side of the wall is held at 500 K, the temperature of the side exposed to the hot gas is _______ K.

Official answer: 548 to 550

Question 56 (2 marks, NAT)

Propulsion - Rockets

A launch vehicle has a main rocket engine with two identical strap-on motors, all of which fire simultaneously during the operation. The main engine delivers a thrust of 6300 kN with a specific impulse of 428 s. Each strap-on motor delivers a thrust of 12000 kN with specific impulse of 292 s. The acceleration due to gravity is 9.81 m/s$^2$. The effective (combined) specific impulse of the vehicle is _______ s.

Official answer: 310 to 315

Question 57 (2 marks, MCQ)

Propulsion - Aerothermodynamics & Cycles

A substance experiences an entropy change of $\Delta s > 0$ in a quasi-steady process. The rise in temperature (corresponding to the entropy change $\Delta s$) is highest for the following process:

1. isenthalpic
2. isobaric
3. isochoric
4. isothermal

Official answer: C

Question 58 (2 marks, NAT)

Propulsion - Rockets

In a particular rocket engine, helium propellant is heated to 6000 K and 95% of its total enthalpy is recovered as kinetic energy of the nozzle exhaust. Consider helium to be a calorically perfect gas with specific heat at constant pressure of 5200 J/kgK. The exhaust velocity for such a rocket for an optimum expansion is _____ m/s.

Official answer: 7690 to 7710

Question 59 (2 marks, NAT)

Flight Mechanics & Space Dynamics - Static Stability & Control

An aircraft is flying level in the North direction at a velocity of 55 m/s under cross wind from East to West of 5 m/s. For the given aircraft $C_{n\beta} = 0.012$/deg and $C_{n\delta r} = -0.0072$/deg, where $\delta r$ is the rudder deflection and $\beta$ is the side slip angle. The rudder deflection exerted by pilot is __________ degrees.

Official answer: 8.6 to 8.7

Question 60 (2 marks, NAT)

Flight Mechanics & Space Dynamics - Airplane Performance

An aircraft weighing 10000 N is flying level at 100 m/s and it is powered by a jet engine. The thrust required for level flight is 1000 N. The maximum possible thrust produced by the jet engine is 5000 N. The minimum time required to climb 1000 m, when flight speed is 100 m/s, is ________ s.

Official answer: 25

Question 61 (2 marks, MCQ)

Flight Mechanics & Space Dynamics - Flight Dynamics

The aircraft velocity (m/s) components in body axes are given as $[u, v, w] = [100, 10, 10]$. The air velocity (m/s), angle of attack (deg) and sideslip angle (deg) in that order are

1. [120, 0.1, 0.1]
2. [100, 0.1, 0.1]
3. [100.995, 0.1, 5.73]
4. [100.995, 5.71, 5.68]

Official answer: D

Question 62 (2 marks, MCQ)

Flight Mechanics & Space Dynamics - Flight Dynamics

The Dutch roll motion of the aircraft is described by following relationship $$\begin{bmatrix}\Delta\dot{\beta}\\ \Delta\dot{r}\end{bmatrix} = \begin{bmatrix} -0.26 & -1 \\ 4.49 & -0.76 \end{bmatrix}\begin{bmatrix}\Delta\beta\\ \Delta r\end{bmatrix}$$ The undamped natural frequency (rad/s) and damping ratio for the Dutch roll motion in that order are:

1. 4.68, 1.02
2. 4.49, 1.02
3. 2.165, 0.235
4. 2.165, 1.02

Official answer: C

Question 63 (2 marks, NAT)

Flight Mechanics & Space Dynamics - Airplane Performance

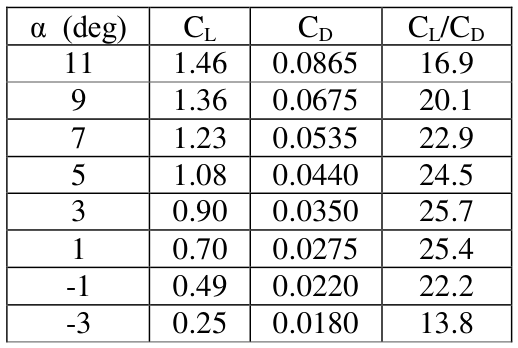

A glider weighing 3300 N is flying at 1000 m above sea level. The wing area is 14.1 m$^2$ and the air density is 1.23 kg/m$^3$. Under zero wind conditions, the velocity for maximum range is __________ m/s. $$\begin{array}{|c|c|c|c|}\hline \alpha\\ (\deg) & C_L & C_D & C_L/C_D \\ \hline 11 & 1.46 & 0.0865 & 16.9 \\ 9 & 1.36 & 0.0675 & 20.1 \\ 7 & 1.23 & 0.0535 & 22.9 \\ 5 & 1.08 & 0.0440 & 24.5 \\ 3 & 0.90 & 0.0350 & 25.7 \\ 1 & 0.70 & 0.0275 & 25.4 \\ -1 & 0.49 & 0.0220 & 22.2 \\ -3 & 0.25 & 0.0180 & 13.8 \\ \hline \end{array}$$

Official answer: 20.0 to 21.0

Question 64 (2 marks, MCQ)

Propulsion - Rockets

A rocket, with a total lift-off mass of 10000 kg, moves vertically upward from rest under a constant gravitational acceleration of 9.81 m/s$^2$. The propellant mass of 8400 kg burns at a constant rate of 1200 kg/s. If the specific impulse of the rocket engine is 240 s, neglecting drag, the burnout velocity in m/s is

1. 3933.7
2. 4314.6
3. 4245.9
4. 4383.3

Official answer: C

Question 65 (2 marks, MCQ)

Flight Mechanics & Space Dynamics - Space Dynamics

A satellite is injected at an altitude of 350 km above the Earth's surface, with a velocity of 8.0 km/s parallel to the local horizon. (Earth radius = 6378 km, $\mu_E$ ($GM$ = Gravitational constant $\times$ Earth mass) = $3.986 \times 10^{14}$ m$^3$s$^{-2}$). The satellite

1. forms a circular orbit.
2. forms an elliptic orbit.
3. escapes from Earth's gravitational field.
4. falls back to earth.

Official answer: B
